Ansaugung
Edelbrock : 7521
Artikel-Nr.: EDE7521

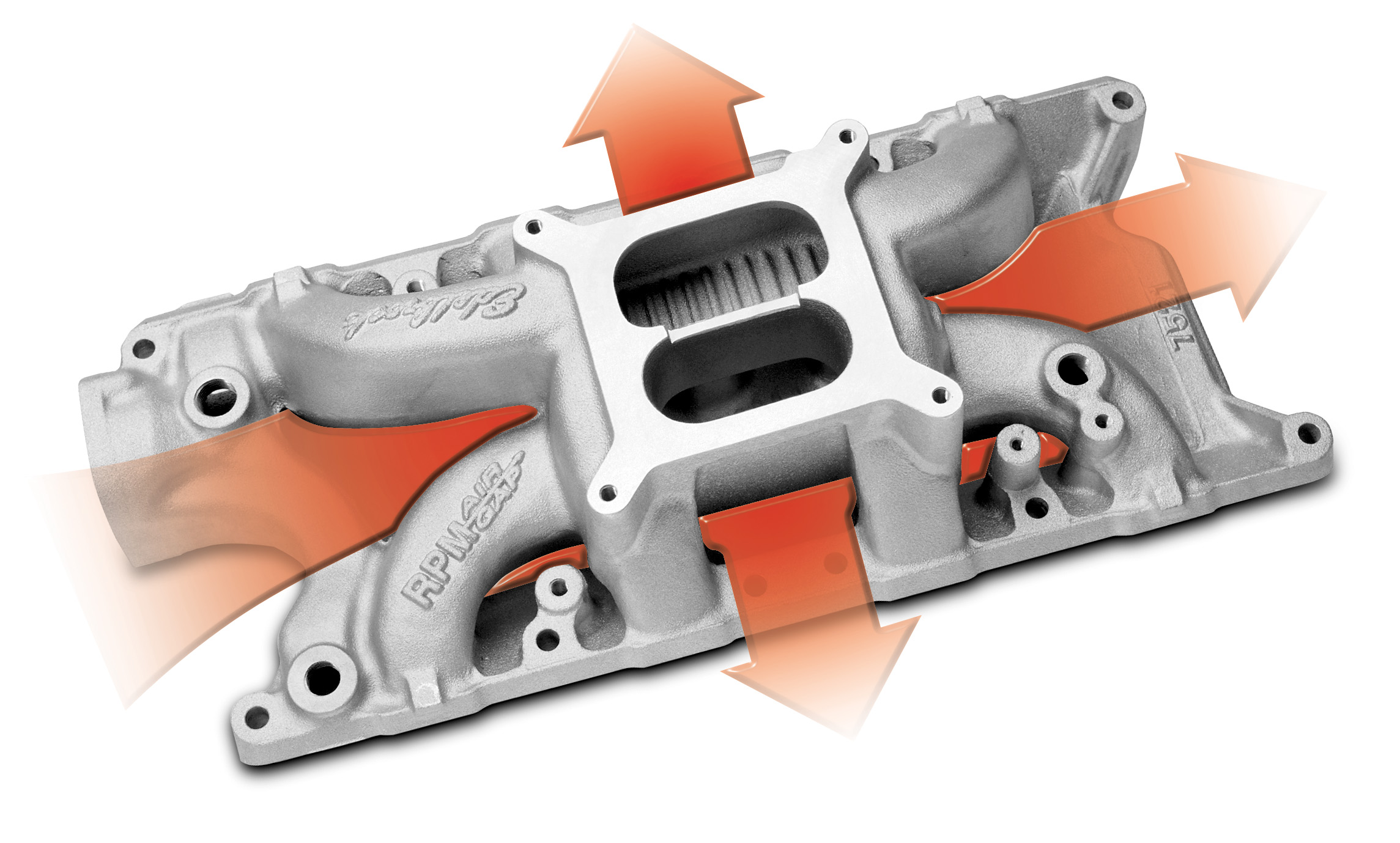

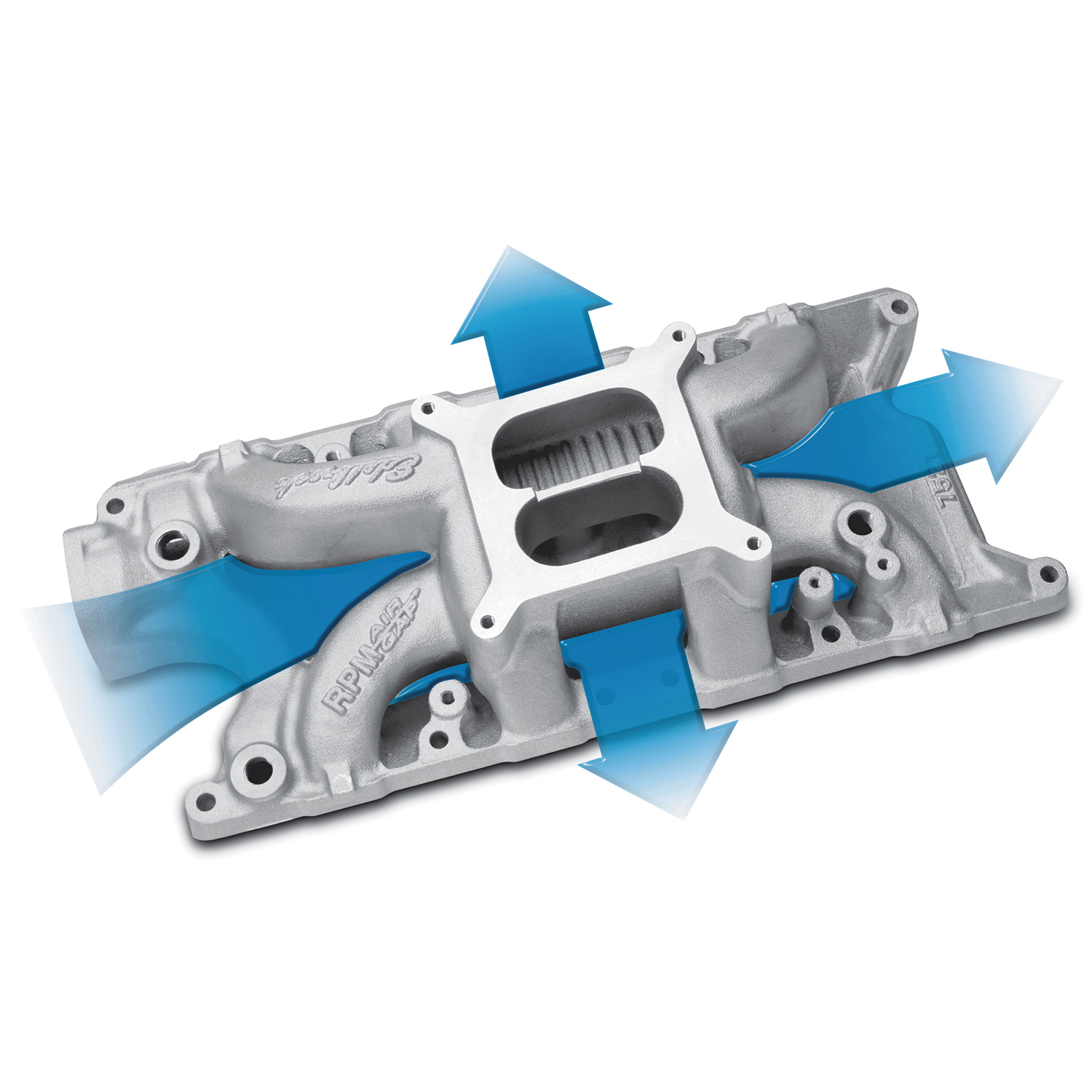

* RPM Air-Gap for 302-331-347 Small-Block Ford V8; Air-Gap design features an open air space under the plenum; Separates fuel and air from engine heat; Larger runners over standard 7121 manifold; Includes nitrous bosses

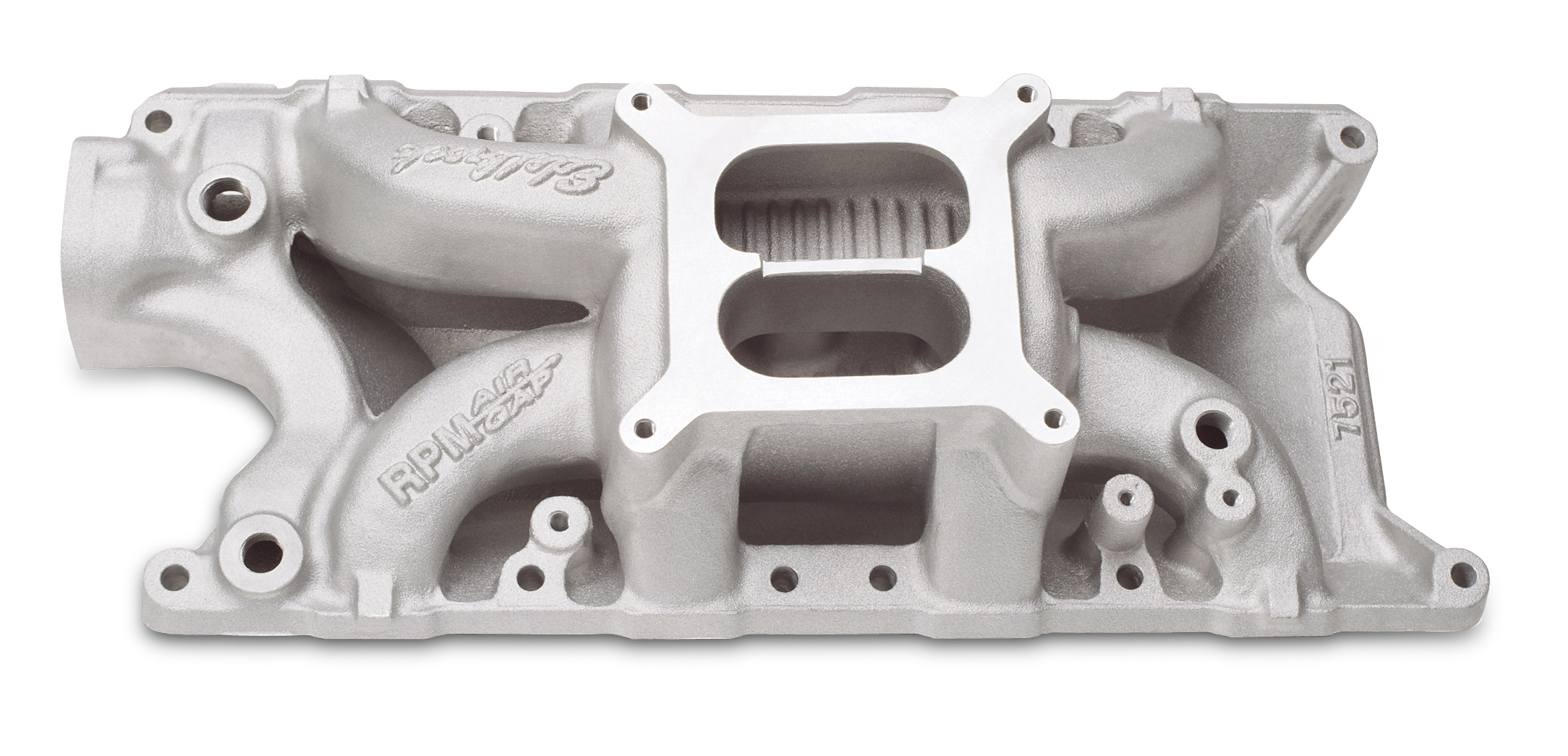

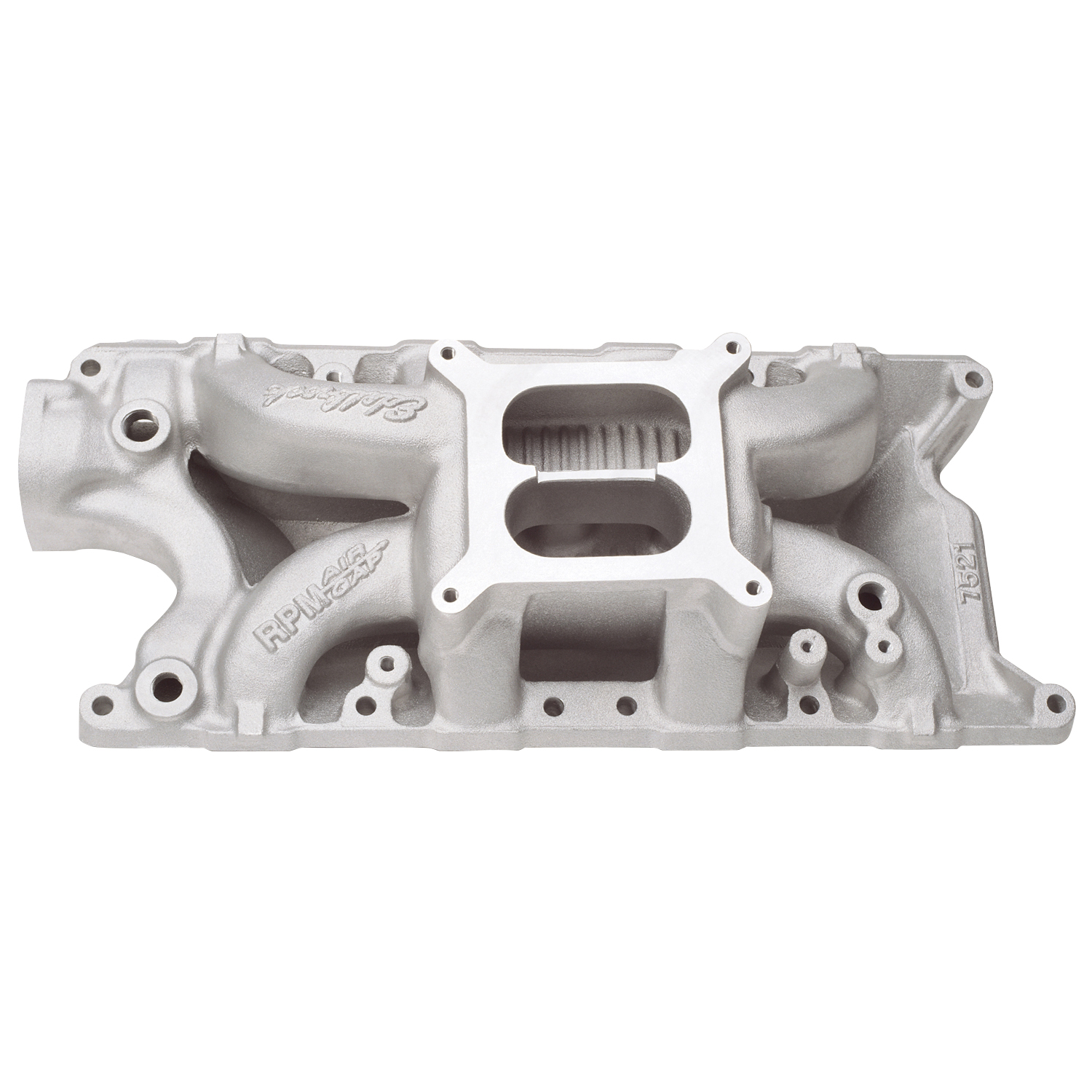

Edelbrock Part # 7521 RPM Air-Gap intake manifold is designed for small-block 302/331/347 Ford V8. Perfect for hot rodders, street machiners, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range.
- Basic Operating RPM Range: 1500-6500 R3
- Center Maximum Height: 4.900 IN
- CNC Ported: No
- EGR Port: No
- Finish: Satin
- Flange Type: 4150
- Front Maximum Height: 4.300 IN
- Gasket or Seal Included: No
- Grade Type: Performance
- Material: Aluminum
- Rear Maximum Height: 5.500 IN
- RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Series: RPM Air-Gap
- Single Or Dual Plane Type: Dual
- Vehicle Model: Ford
- Make: Ford
- Block type: Small Block
