Ansaugung
Holley : 300-117
Artikel-Nr.: HOL300-117
* Port Size 2.49 in. Height 1.21 in. Wide * Standard LS3 Molded O-Ring Mounting Flange Gasket * Plenum Top Gasket Type 3/32 in. Round O-Ring Cord

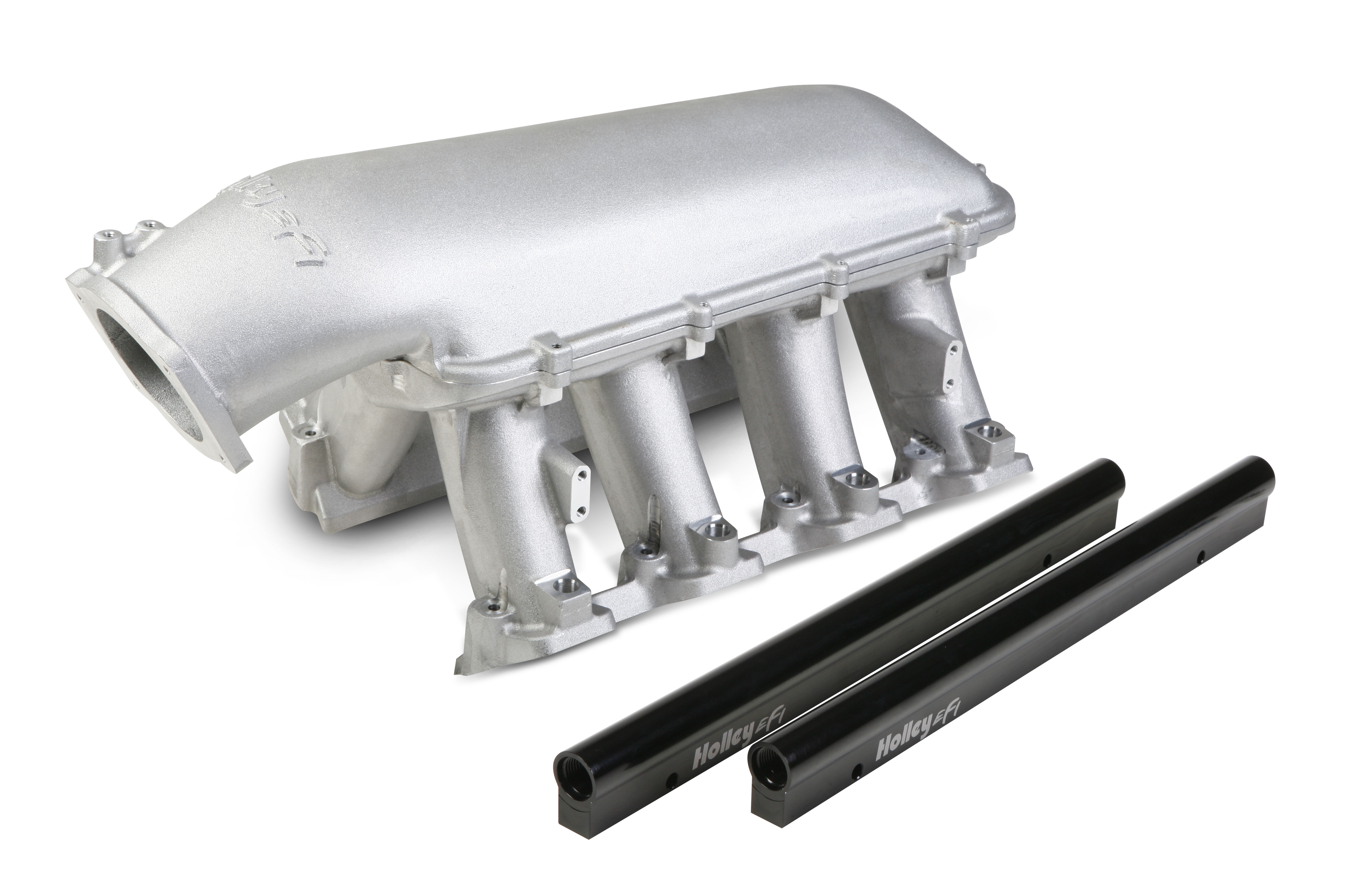

Hi-Ram Intake Manifold; Upper; EFI; 1x105 mm Throttle Body; Longitudinal Mount Plenum Top; Front/Rear Height 12.32 in.; Incl. Fuel Rails; RPM Power Band 7000-8000; Satin Finish;
- Construction: Cast
- Cylinder Head Type: Standard
- Emission: Without EGR
- Engine Make/Size: GM LS3/L92
- Finish: Satin
- Flange Type: EFI
- Front Height: 12.320 in.
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Number Of Carbs: None; For Fuel Injection
- Position: Upper
- Rear Height: 11.000 in.
- RPM Range: 7000-8000
- Usage: Racing
- Usage: Street/Hi-Performance
