Ansaugung
Holley : 300-122
Artikel-Nr.: HOL300-122
* Port Size 2.49 in. Height 1.21 in. Wide * Standard LS3 Molded O-Ring Mounting Flange Gasket * Plenum Top Gasket Type 3/32 in. Round O-Ring Cord

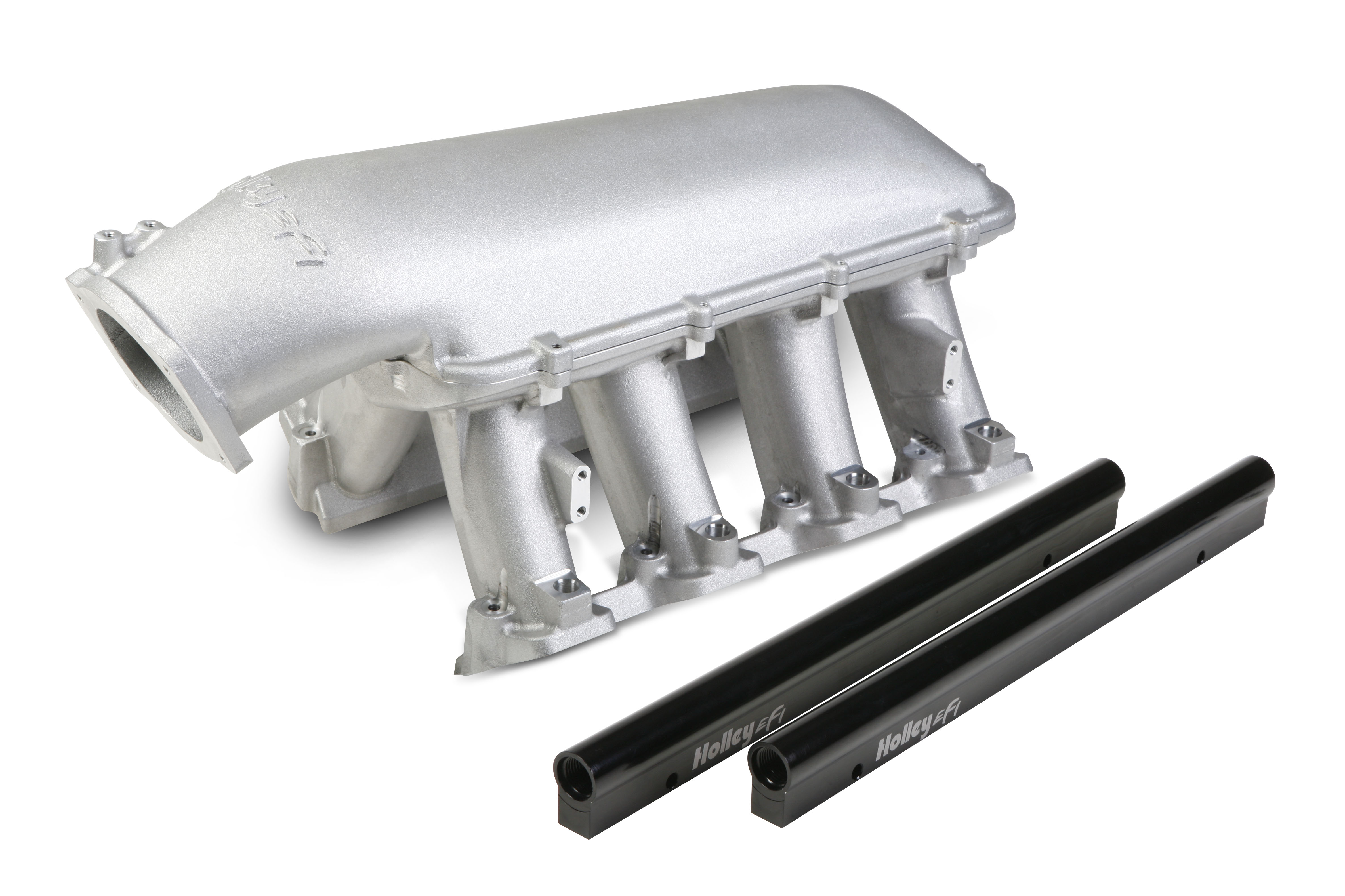

Hi-Ram Intake Manifold; Cathedral Port EFI For 1 x 92mm Throttle Body; Front/Rear 8.42 in.; RPM Power Band 1500-7000; Satin Finish;
- Construction: Cast
- Cylinder Head Type: Standard
- Emission: Without EGR
- Engine Make/Size: GM LS1/LS2/LS6
- Finish: Satin
- Flange Type: EFI
- Front Height: 12.320 in.
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Number Of Carbs: None; For Fuel Injection
- Position: N/A
- Rear Height: 11.000 in.
- RPM Range: 1500-7000
- Usage: Street/Hi-Performance
