Ansaugung
Holley : 300-4
Artikel-Nr.: HOL300-4
* Single Plane/Open Plenum Design * Deep Plenum Design With Isolated Runners * 4150 Square Bore Carburetor Mounting Flange * Power Band 4500-8500 rpm * Height Front 4.75 in. Rear 6.25 in. * Port Size 1.85 in. Height 1.60 in. Width

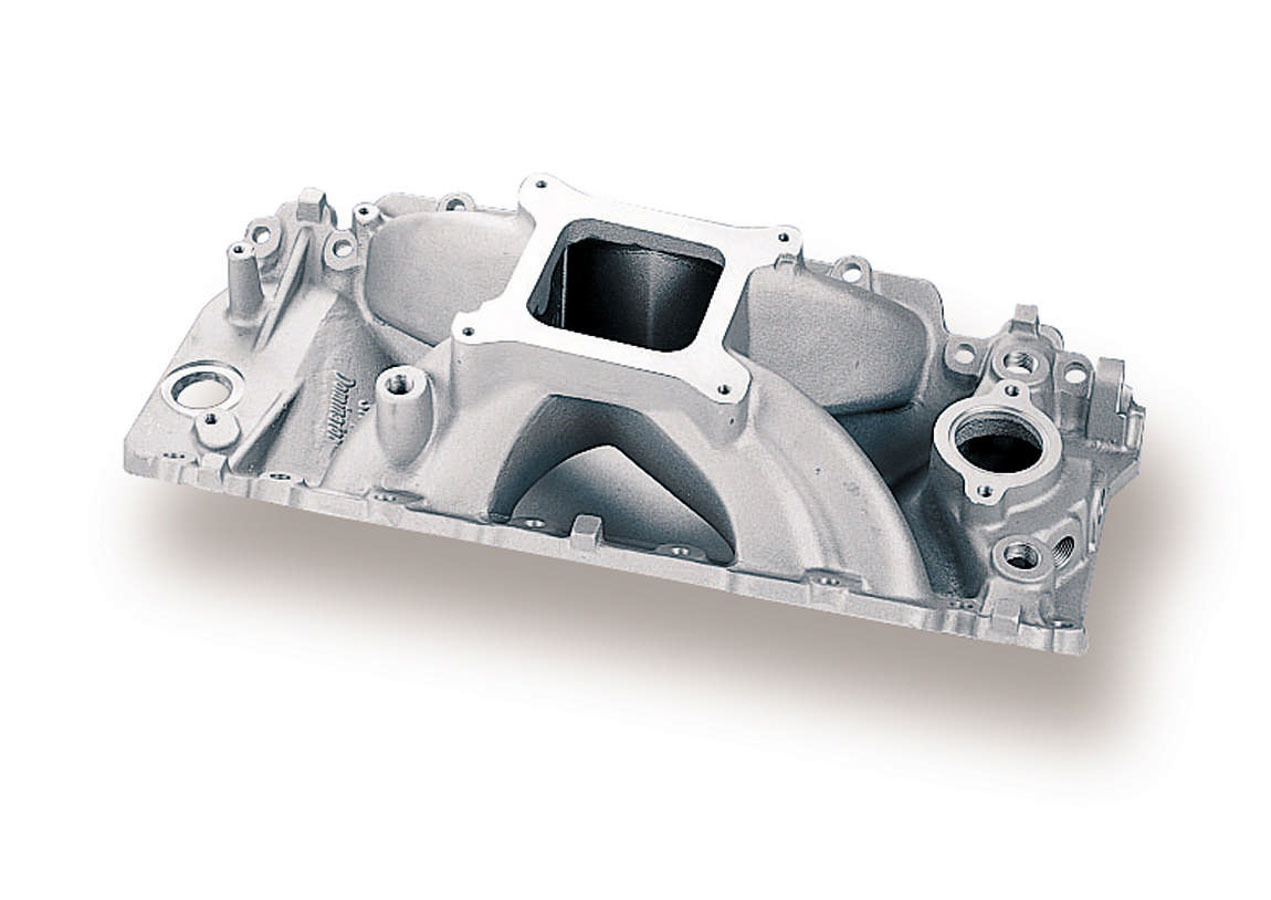

Strip Dominator Intake Manifold; Upper; Open Plenum Design; Carbureted; Front Height 4.77 in./Rear Height 6.16 in.; RPM Power Band 4500-8500; w/Oval Port Heads; Satin Finish;
- Construction: Cast
- Cylinder Head Type: Oval Port- Standard
- Emission: Without EGR
- Engine Make/Size: Chevy Big Block V8
- Finish: Satin
- Front Height: 4.770 in.
- Fuel System Type: Carb
- Manifold Type: High Rise
- Number Of Carbs: One
- Position: Upper
- Rear Height: 6.160 in.
- RPM Range: 4500-8500
- Usage: Street/Strip
