Kühler
Frostbite : FB109
Artikel-Nr.: FRBFB109
* 100 Percent TIG Welded Seams * Aircraft Quality Aluminum Core/Fittings/Tanks * Billet Aluminum Filler Neck And OEM Brass Petcock * More Cooling Fins Per Inch For More Efficient Cooling * Custom Frostbite High Performance 16 lb. Radiator Cap * Polished Top And Tanks For Custom Show Appearance * 2-Row Supporting Applications w/300-500 Horsepower * Flow Style Is Down Flow * 1 Year Limited Warranty

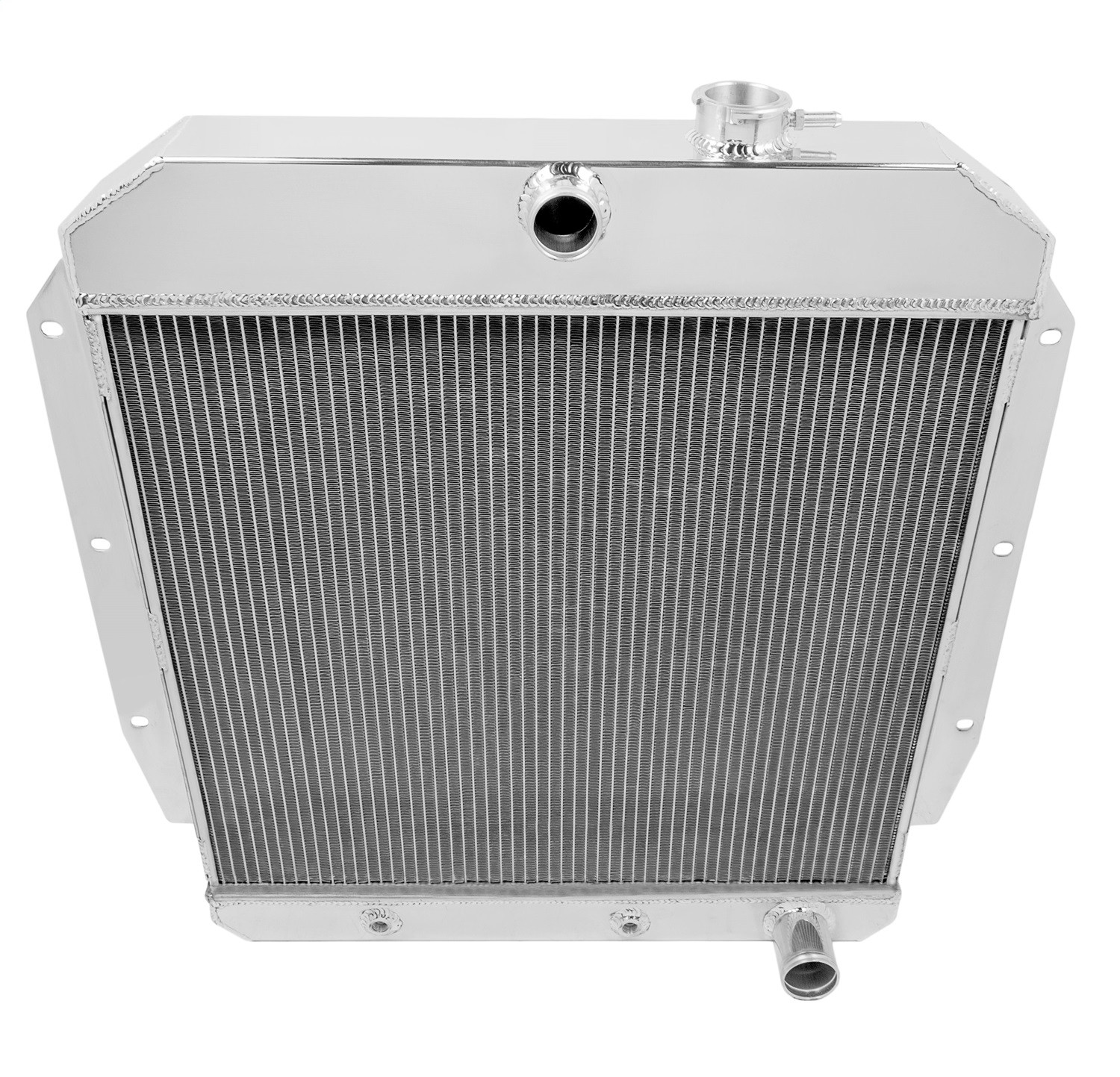

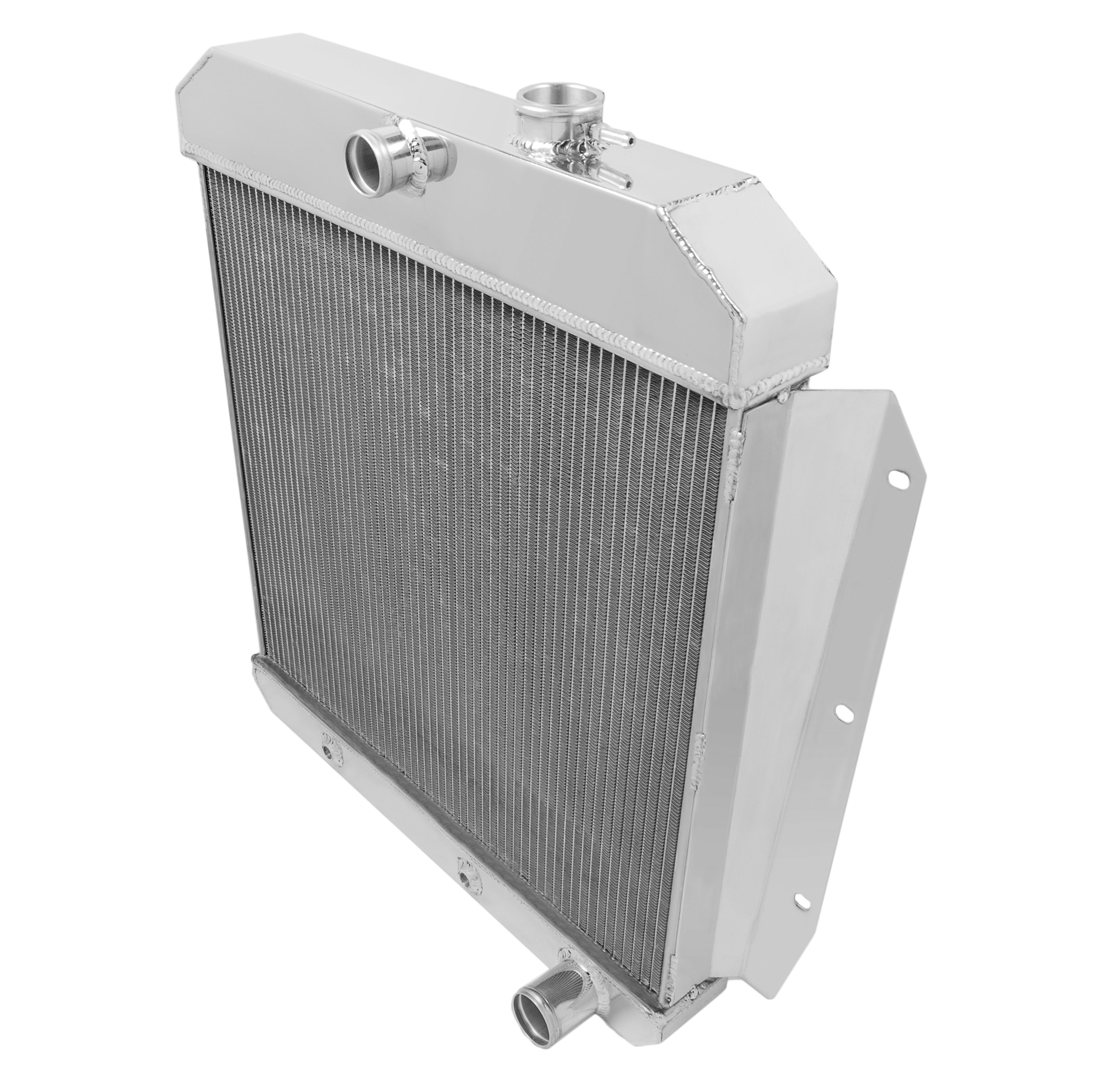

Aluminum Radiator; 2-Row; 1 1/2 in. Inlet; 1 3/4 in. Outlet; 25 1/8 x 26 7/8 in. Overall; Bracket Mount;
- Cooling Row Diameter: 0.750 in.
- Core Dimension: 19.750 in. x 21.750 in.
- Core Thickness: 1.570 in.
- Flow Style: Down Flow
- Hose Location Inlet: Center
- Hose Location Outlet: Passenger
- Inlet Diameter: 1.500 in.
- Item Height: 25.125 in.
- Material: Aluminum
- Mount Type: Bracket Mount
- Mounting: Bracket Mount
- Outlet Diameter: 1.750 in.
- Overall Dimension: 26.750 in. x 26.500 in.
- Overall Length: 26.850 in.
- Radiator Core Row Quantity: 2
- Transcooler Provision: 0.500 in. -20 Straight Thread G 0.250 in.
- 205186:
