Kreuzgelenk
Precision : HMG458
Artikel-Nr.: PRC458
Combination joint 92x27mm and 92x28,6mm out / in.

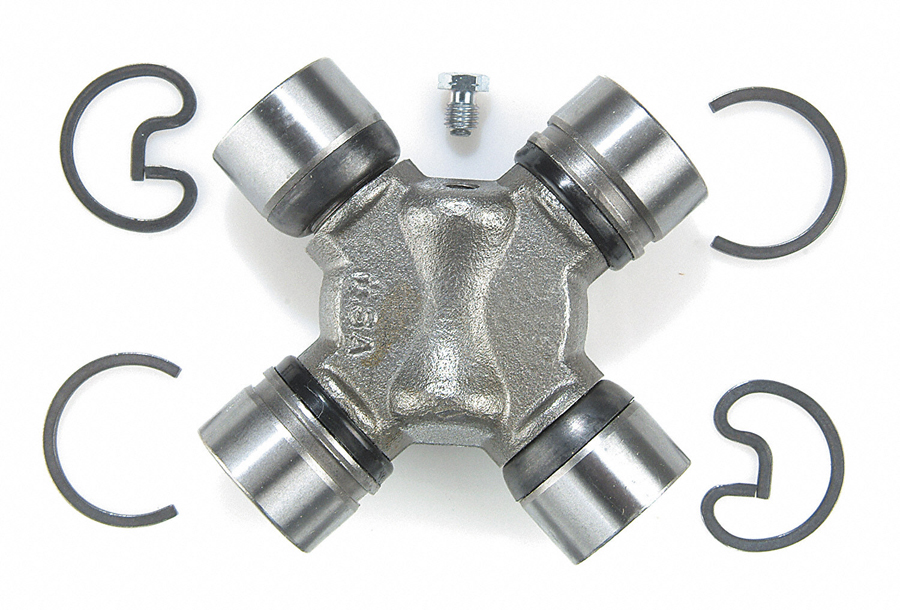

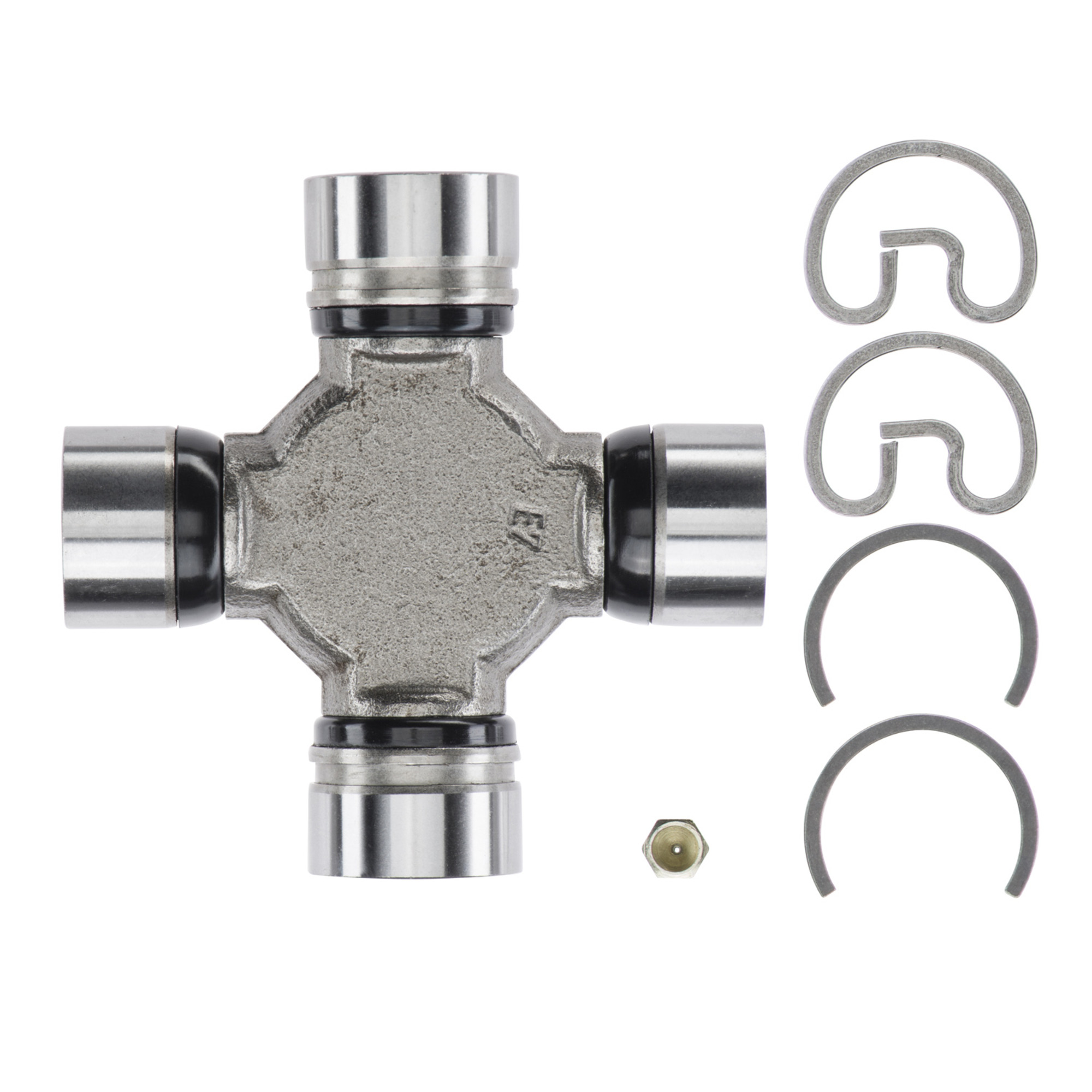

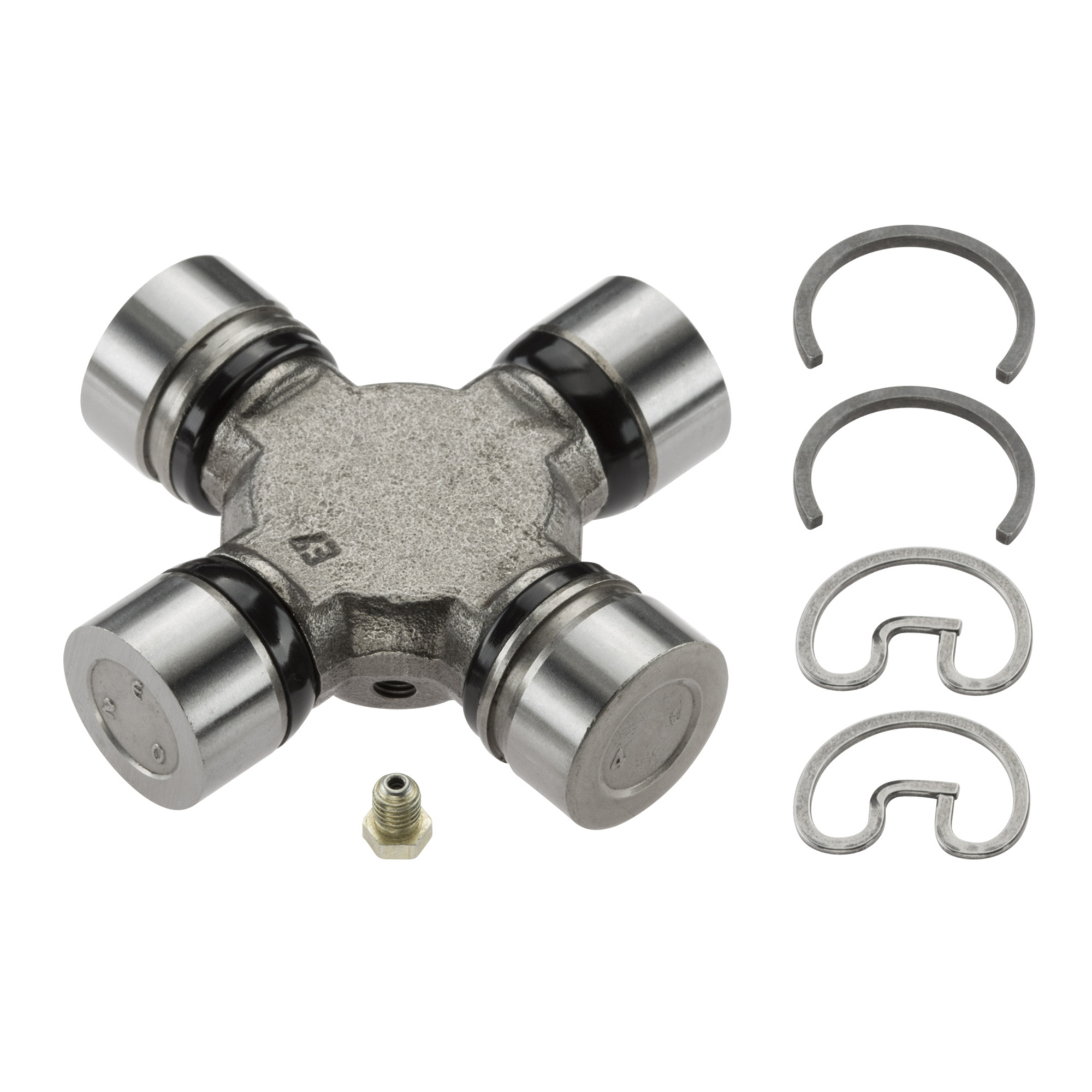

MOOG Driveline Products 458 Greaseable Premium Universal Joint
- Bearing Cap Axis 1 Diameter: 1.063 IN
- Bearing Cap Axis 1 Diameter: 27 MM
- Bearing Cap Axis 2 Diameter: 1.125 IN
- Bearing Cap Axis 2 Diameter: 28.6 MM
- Bearing Cap Type: 2 Grooved & 2 Plain Round Bearings
- Greaseable: YES
- Length Axis 1: 3.625 IN
- Length Axis 1: 92.075 MM
- Length Axis 2: 2.433 IN
- Length Axis 2: 61.798 MM
- Length Measurement A: Outside of Bearing To Outside of Bearing
- Length Measurement B: Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
- Lube Fitting Location: Flush-type lube fitting in cross
- OE Series: Combination 316 x 354
- Part Description: Universal Joint
- U-Joint Identification: 2 Grooved & 2 Plain Round Bearings
- 20319: TRW Steering and Suspension
- 20355: Autopar
- 20355: GMB
- 2-0355: Chicago Rawhide
- 2-0355: Neapco OE Series
- 2-0355: SKF
- 2400359: GMB
- 355: Perfect Circle
- 362: British Leyland
- 45U0182: ACDelco
- 5355X: Spicer
- 5635X: Spicer
- 5637X: Spicer
- 5672X: Spicer
- 5796X: Spicer
- AEC362: Replaced
- SPL257X: Autopar
- SPL25-7X: Spicer
- U355: Mcquay-Norris
