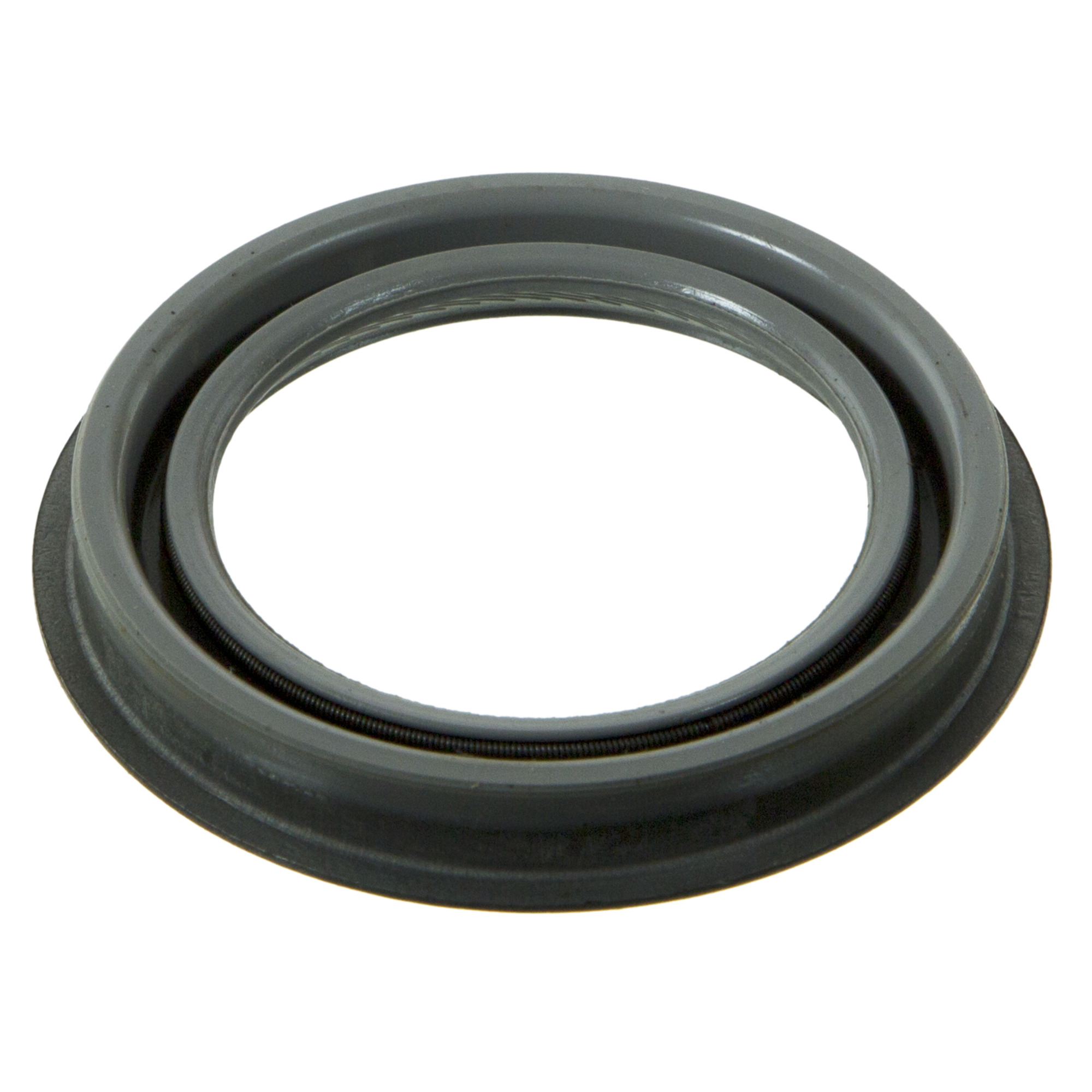

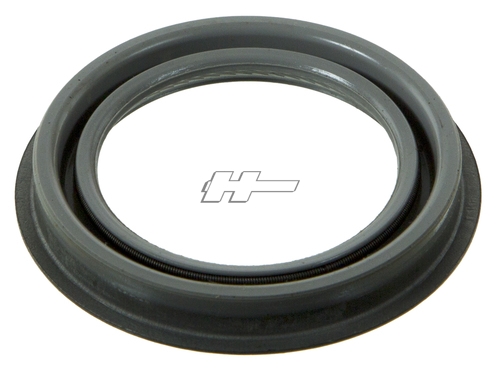

Stoffbuchse
National Seal : RNT3404
Artikel-Nr.: NAS3404
- Flanged Outside Diameter: 3.020 IN
- Flanged Outside Diameter: 76.710 MM
- Helix Type: Clockwise-Spiral Lip Design
- Housing Bore: 2.743 IN
- Housing Bore: 69.670 MM
- Inside Diameter: 1.996 IN
- Inside Diameter: 50.700 MM
- Material: Silicone
- Outside Diameter: 2.751 IN
- Outside Diameter: 69.880 MM
- Part Description: Oil Seal
- Sealing Material: Silicone
- Series: 3000
- Shaft Diameter: 1.996 IN
- Shaft Diameter: 50.700 MM
- Thickness: 0.325 IN
- Thickness: 8.260 MM
- Type: 75
- Unit of Dimension: Inch
- Width: 0.325 IN
- Width: 8.260 MM
- 19799:
- 19839:
- 19966:
- 20031:
- 3404:
- 36070G: Transtar
- B29609:
- B37012:
- E9TP7A248A:
- E9TP7A248AA:
- E9TZ-7A248A:
- E9TZ7A248B:
- F2VP-7A248-AA:
- F2VP-7A248-AB:
- F2VY-7A248-A:
- FO-191:
- LO-29:
- NAT73601: Replaced
