Zündbox Digital
MSD Ignition : 6201
Artikel-Nr.: MSD6201

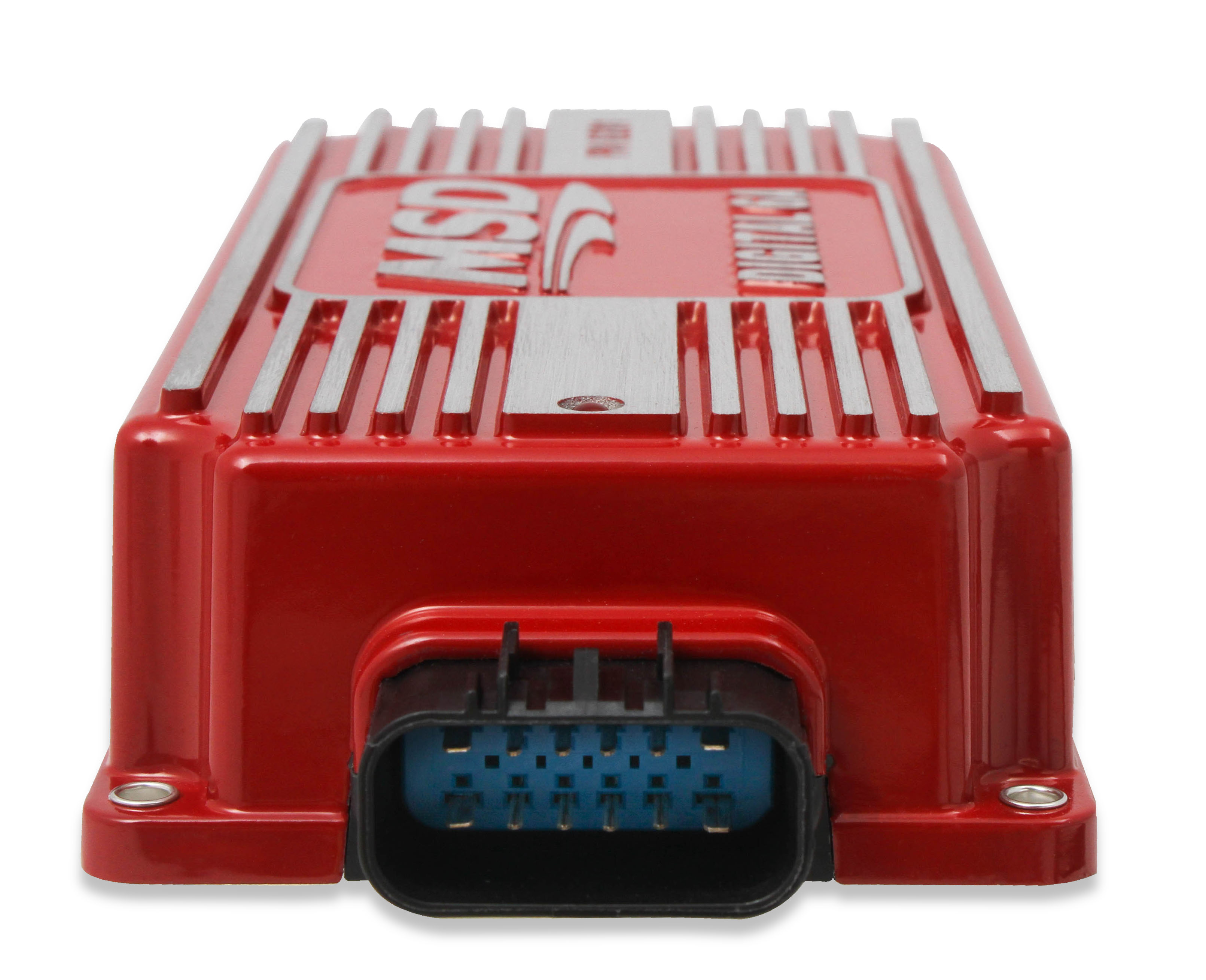

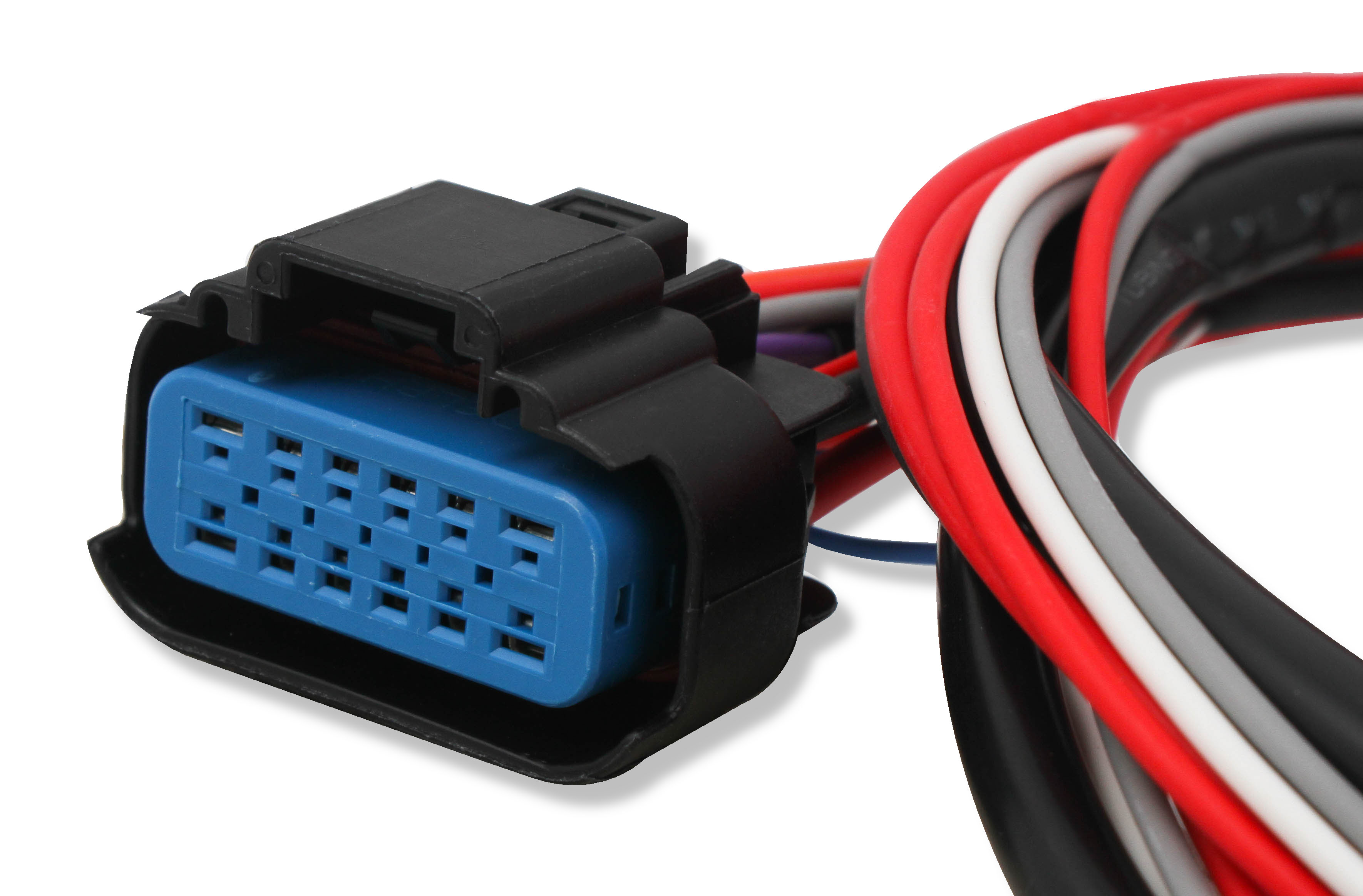

* Will not accept a rev limiter * High Output w/530 Volts And 135Mj Of Spark Energy * Efficient components use less current to produce more power * Built-in LED for system checks * All wires exit through a locked; sealed connector * Compatible w/4/6/8 Cylinder Engines

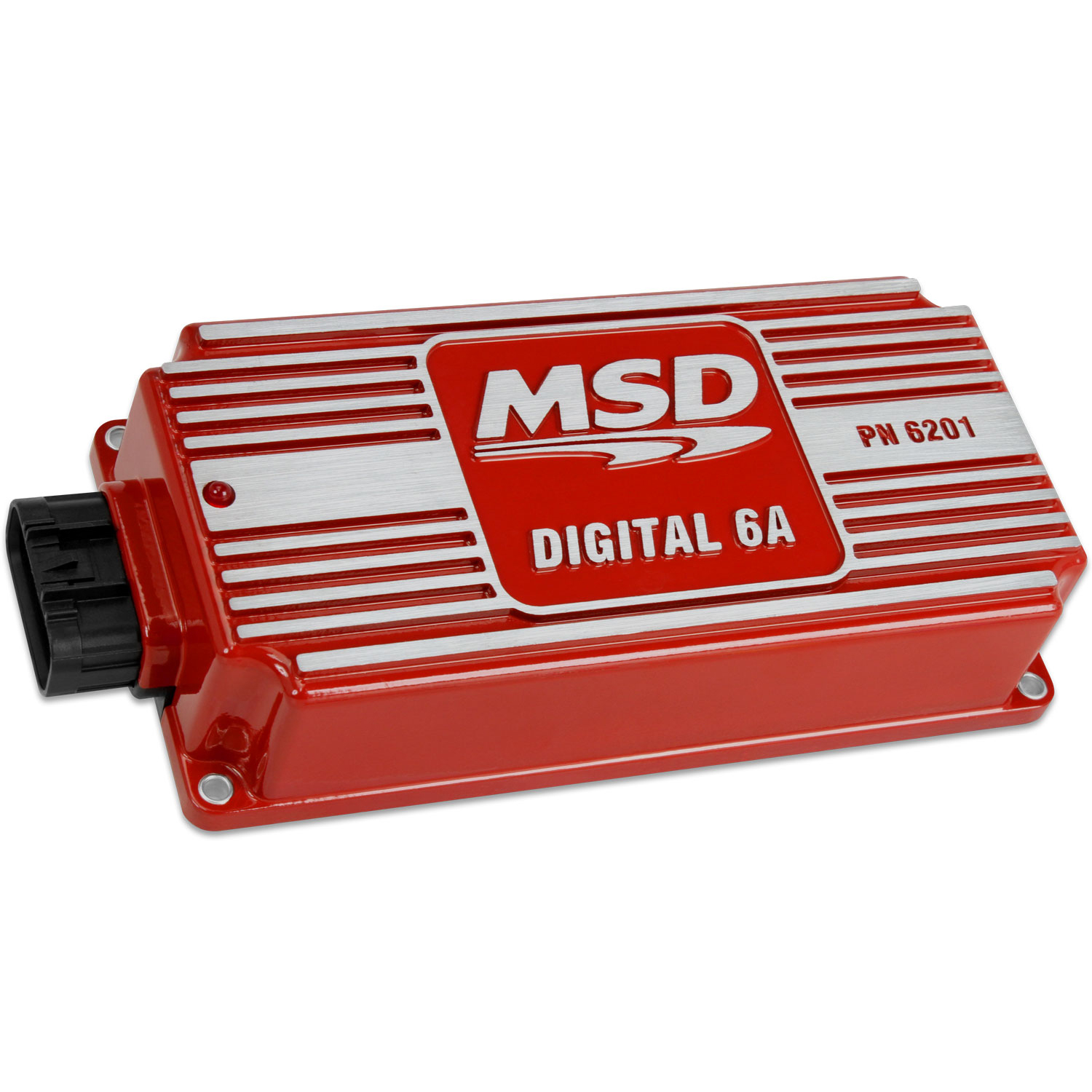

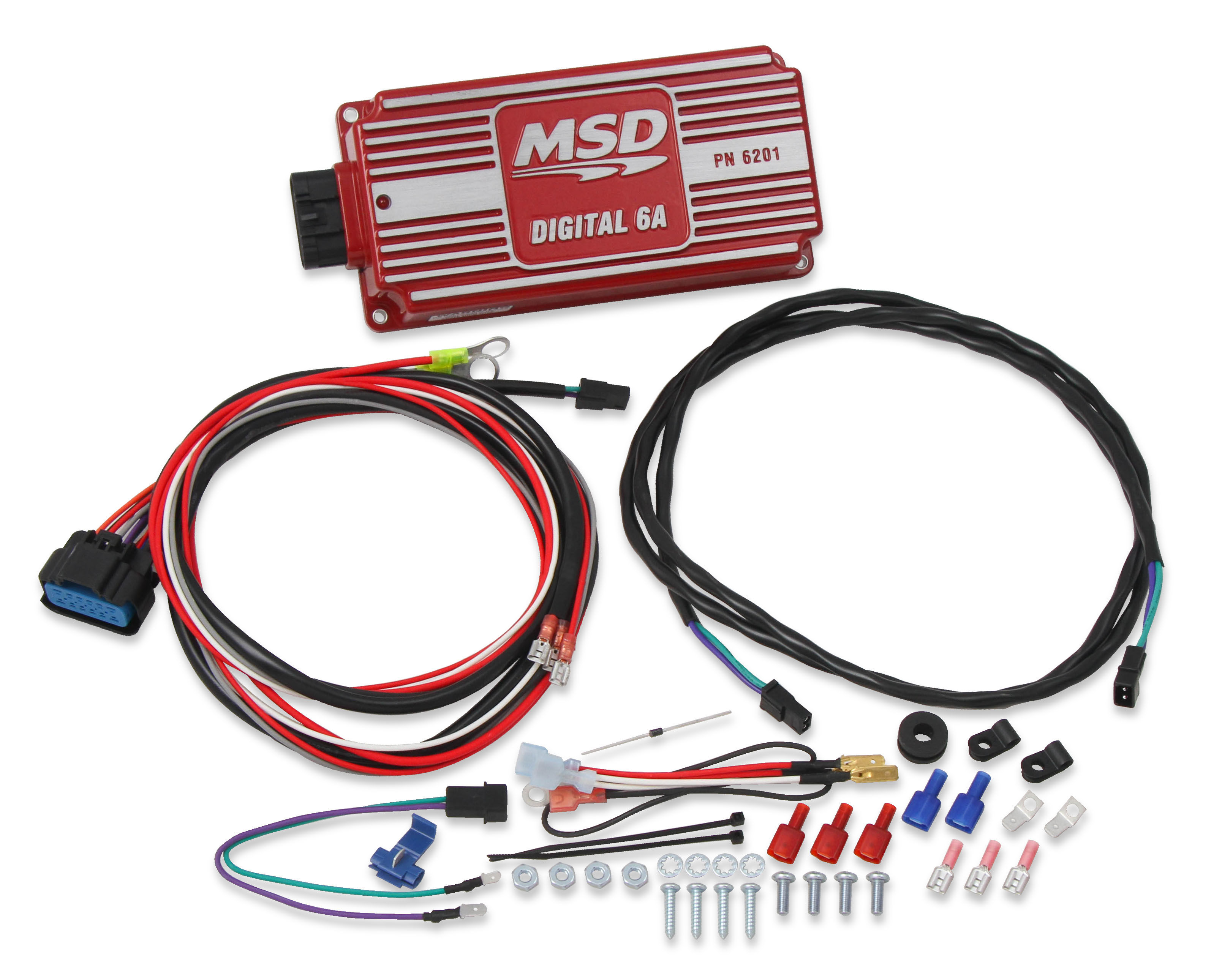

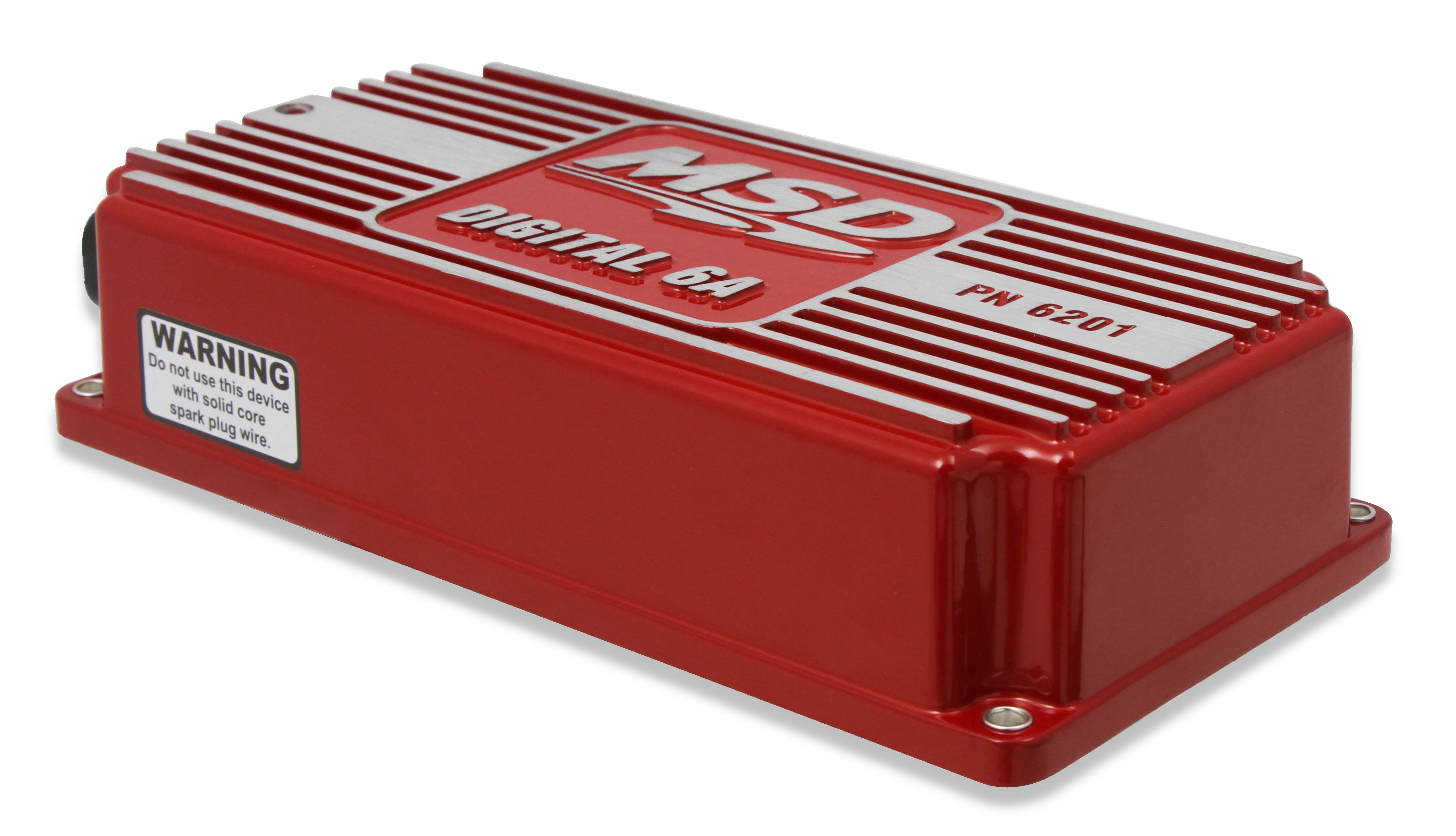

Digital-6A Ignition Controller; For 4/6/8 cyl. Engines; Red;
- Color: Red
- Current Draw: .7 Amp per 1000 RPM
- Primary Voltage: 520-540
- RPM: 15000
- Secondary Voltage: 45000
- Spark duration: 20 Degree Crankshaft Rotation
- Spark Energy: 135-145 mJ per spark
- Voltage: 12-15 V; 7 V Start
- MSD6200: Replaced
