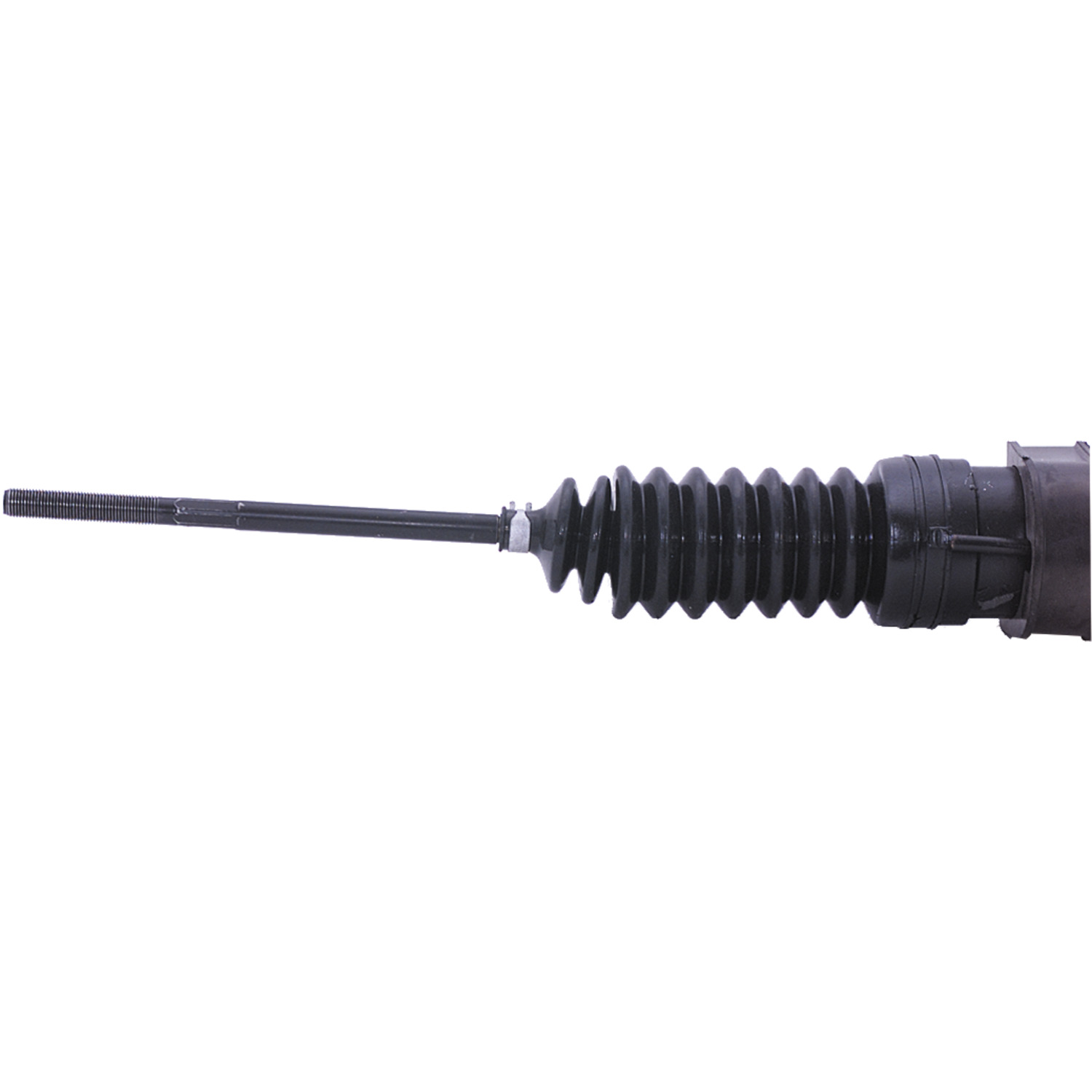

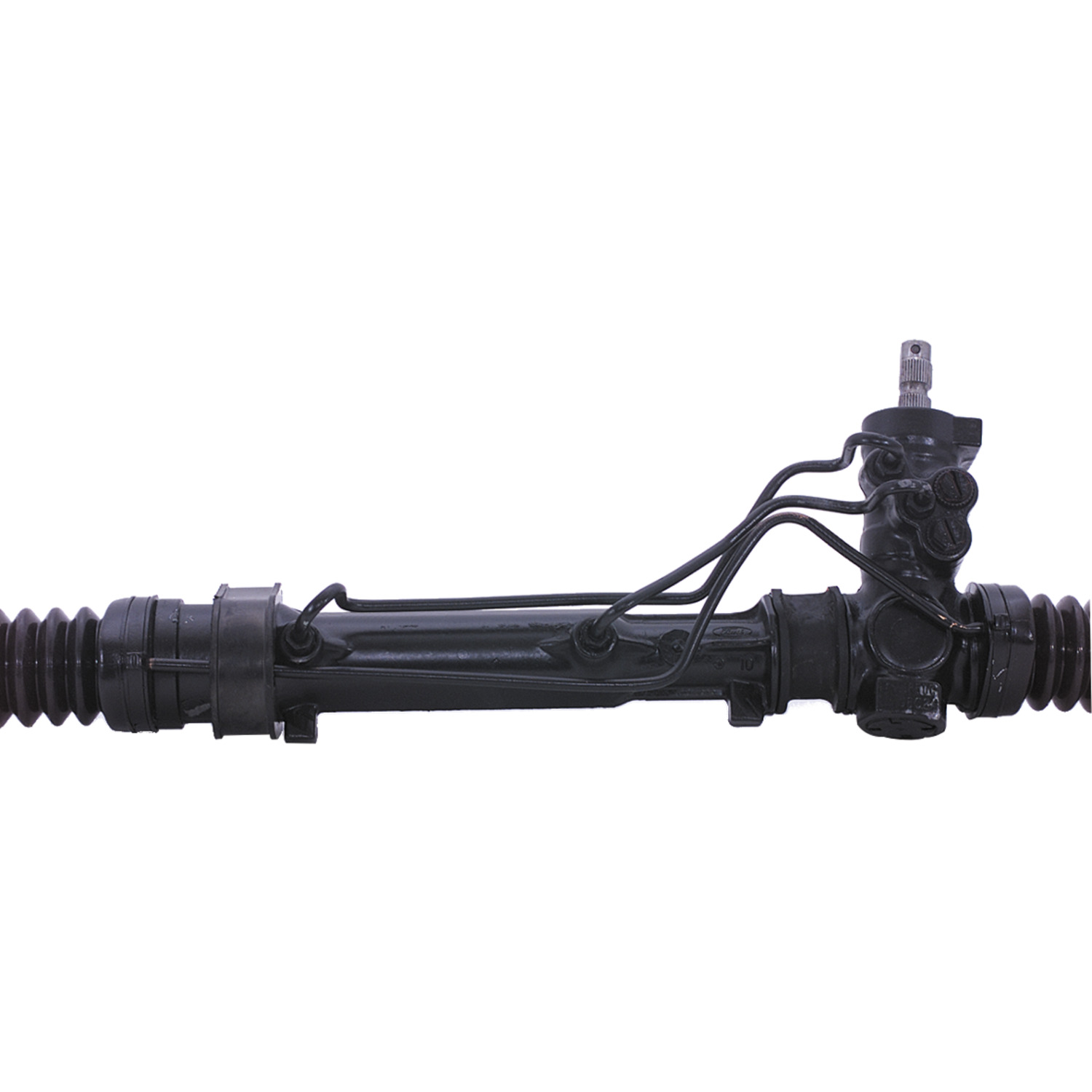

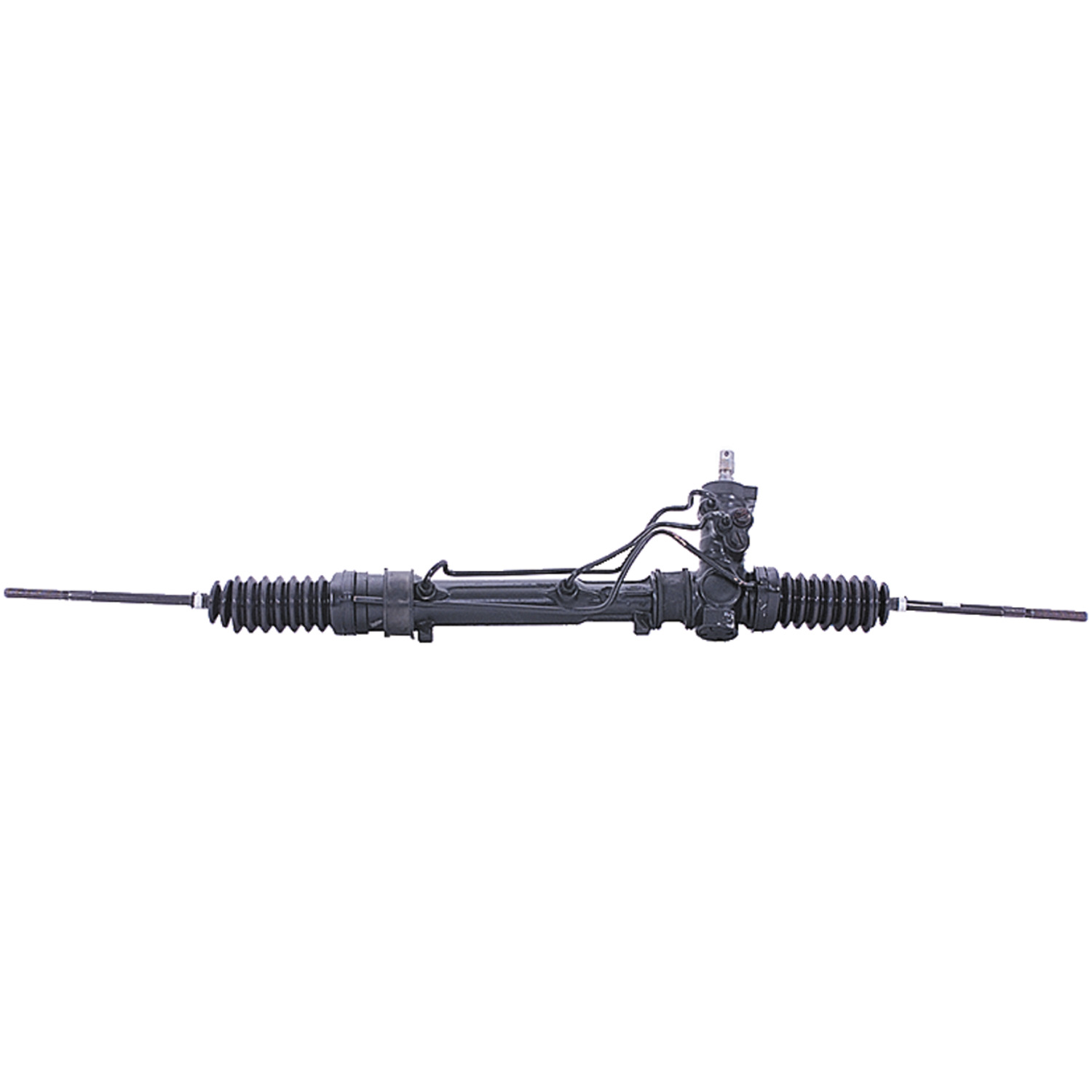

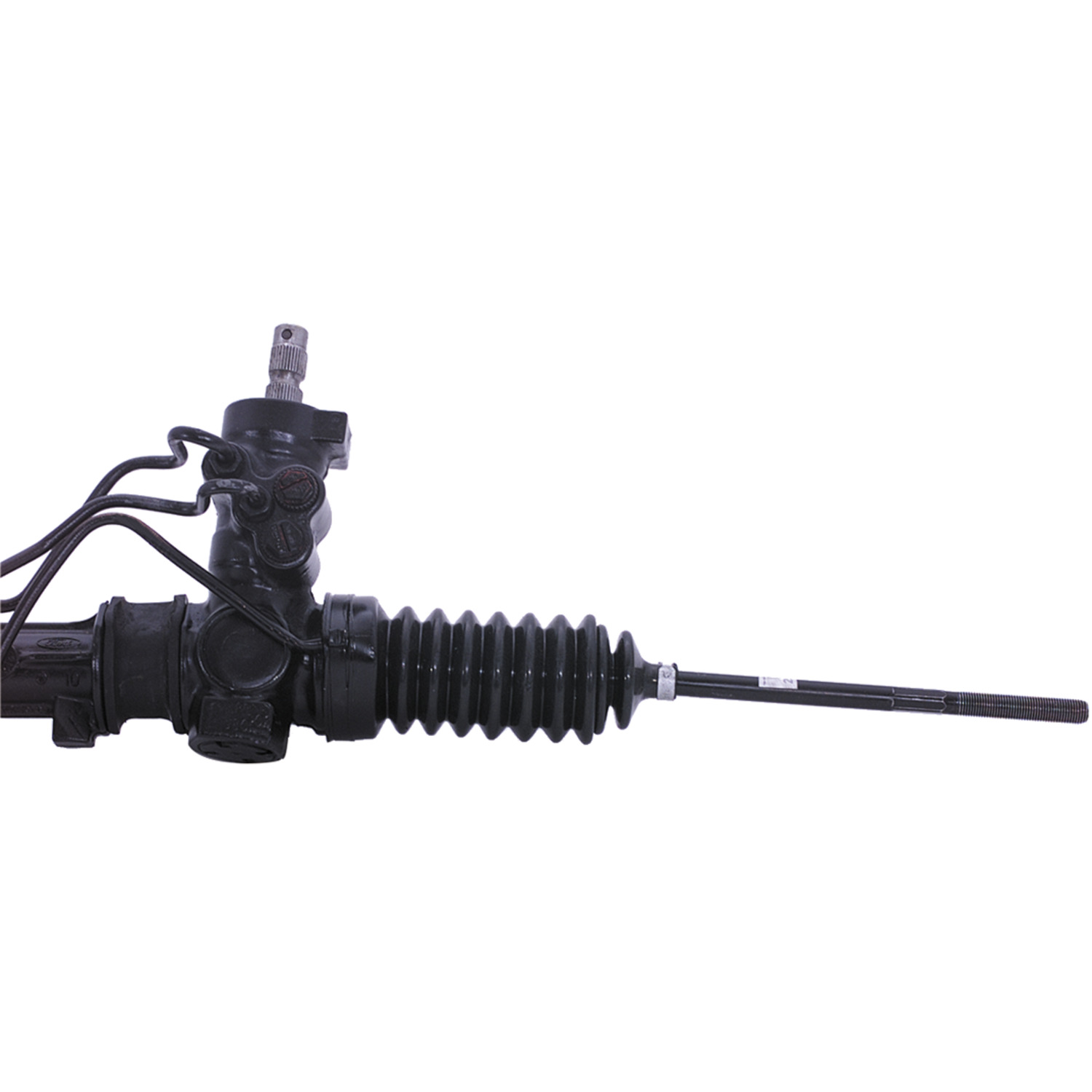

Zahnradstange
Cardone : 22209
Artikel-Nr.: CDO22209
- Box Part Number: RPZ-3
- Canada VIO Count: 1768
- Cardone Pop Code: W
- Casting Material: Aluminum
- Distance Between Mounting Holes (in): 0
- Distance Between Mounting Holes (mm): 0.00
- E-Waste: No
- FAQs: For the first few minutes of driving my car, the steering is hard. Is the rack and pinion bad or the power steering pump?
- FAQs: I replaced the rack and now the power steering pump is whining. What happened? It never did this before!
- FAQs: Steering not returning to center coming out of a turn. What could be causing this?
- FAQs: The most likely cause of power steering pump whine is air in the system. The Steering system must be bled completely.
- FAQs: The rack and pinion does not return to center by itself. The geometry of the front suspension causes the wheels to return to center coming out of a turn. If the vehicle will not return to center, first, check the front end alignment, then, check for a restricted return line in the power steering system. If the return line is restricted or kinked, this could be blocking the flow of fluid back to the pump.
- FAQs: This symptom is classified as "morning sickness". This condition is caused by Teflon sealing rings on the spool valve wearing grooves in the aluminum housing of the rack and pinion resulting in an internal bypass of pressure. Once the housing warms up, the metal will expand and reduce the pressure loss. The rack and pinion must be replaced.
- Features and Benefits: 100% replacement of rubber sealing components.
- Features and Benefits: All new spool valve seals and rack donut seals are installed to eliminate internal leaks and ensure reliable performance (where applicable).
- Features and Benefits: Application of specialized lubricant(s) for extended life.
- Features and Benefits: As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Features and Benefits: Each unit undergoes a factory test drive, simulating extreme operating conditions while verifying all on-car communications.
- Features and Benefits: Finished in protective coating to prevent corrosion and rust.
- Features and Benefits: Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
- Features and Benefits: Valve housings have polished micro-finish sleeves for durability (where applicable).
- Hose Port Type: Teflon
- Input Shaft Diameter (in): 0.82
- Input Shaft Diameter (mm): 20.88
- Input Shaft Length (in): 1.75
- Input Shaft Length (mm): 44.45
- Number of Mounting Holes: 2
- Package Contents: Rack and Pinion, Rubber Bushings, Sealing Kit, Instruction Sheet
- Pressure Port Thread Size: 9/16 x 18
- Product Condition: Remanufactured
- Product Line Marketing Stmt: After 50 years of leadership in the automotive aftermarket, we are excited to start the next chapter of CARDONE's dynamic history. We are positioned to support the next wave of vehicle technology and ready to innovate new solutions that bring value to our customers - all while upholding sustainable business practices and high ethical principles. We build it better.
- Qty To Pallet: 28
- Rack Length (in): 44.25
- Rack Length (mm): 1123.95
- Return Port Thread Size: 5/8"- 18
- Steering Rack Color: Black
- Thread Length (In): 2.50
- Thread Length (mm): 63.50
- Tie Rod Ends Included: Yes
- Total Turns Lock to Lock: 3
- E7FZ3280A: Ford
- E7FZ3280A: Mercury
- E7FZ3L547A: Ford
- E7FZ3L547A: Mercury
- F03Z3280A: Ford
- F03Z3280A: Mercury
- F03Z3280B: Ford
- F03Z3280B: Mercury
- F03Z3L547A: Ford
- F03Z3L547A: Mercury
- F13Z3504DCRM: Ford
- F13Z3504DCRM: Mercury
